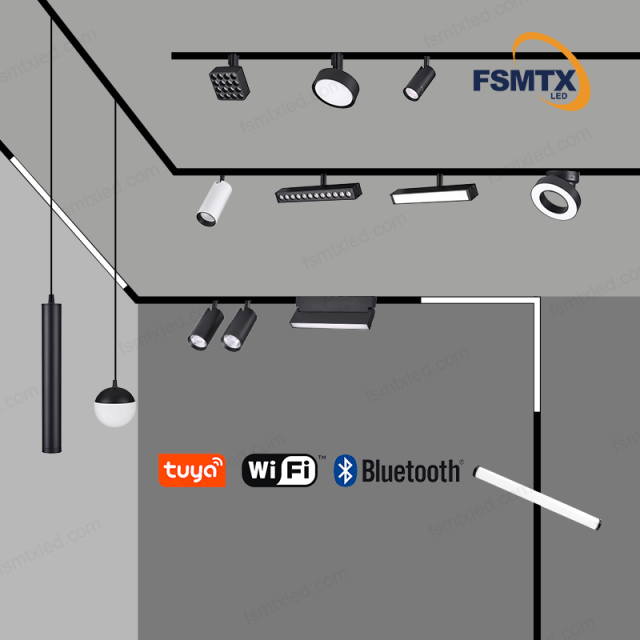

220V Magnetic Track Light

Foshan Mantian Xingguang Lighting Electrical Co., Ltd. has a rich experience in manufacturing and exporting 220V magnetic track lighting systems since 2017, we can provide the whole system including DC90-265V magnet rail lights, recessed/surface/suspended magnetic track rail , accessories.Don’t need a transformer, it can be used directly after power connection.This solution is very safe, even if people touch the track or lights when it is powered on,You can't get an electric shock.

After the lamps and lanterns are installed,the position can be adjusted freely,and the quantity can also be increased or decreased at will.It is available to do DIY track lighting system by all smart dimmable magnet lamps.

Speak with us to find out more of the applications and benefits in the adoption of magnetic lighting for your space today.

All the magnetic linear track light systems can be with a smart solution.

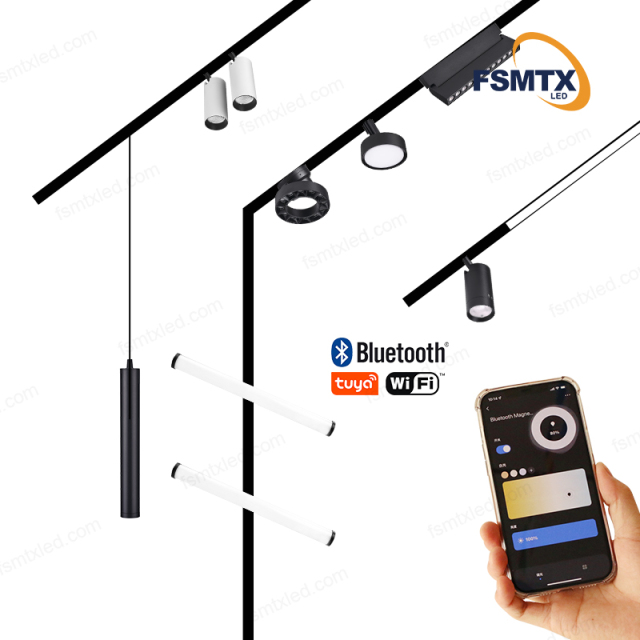

This smart magnetic track light is with 2.4G Wifi or Bluetooth solution, remote control by TUYA APP on a smartphone, and it is also available controlled by a remote controller, smart control panel, or smart speaker likeGoogle Home, Amazon Alexa speakers through the WIFI, and smart Bluetooth Gate way(hub). It is tunable in color temperature (3CCT Color changing), and dimmable brightness.

Installation & Mounting

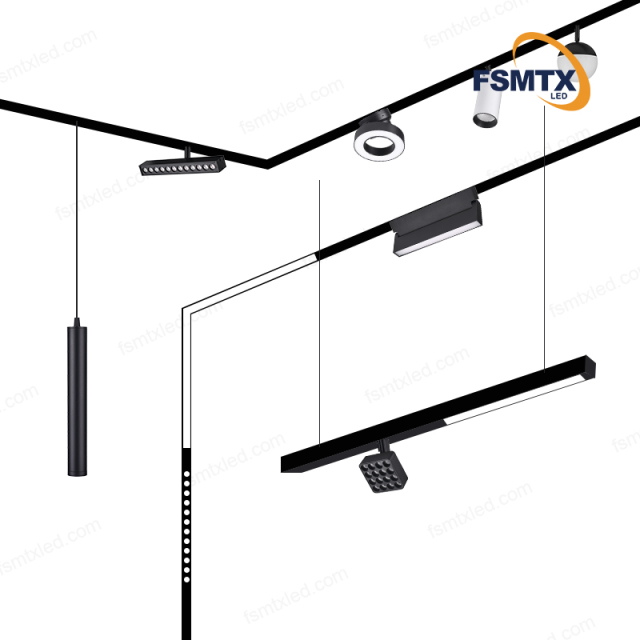

There are including recessed, trimless, surface mounted, and suspended installation for M25 Series smart dimmable magnetic track lighting system.

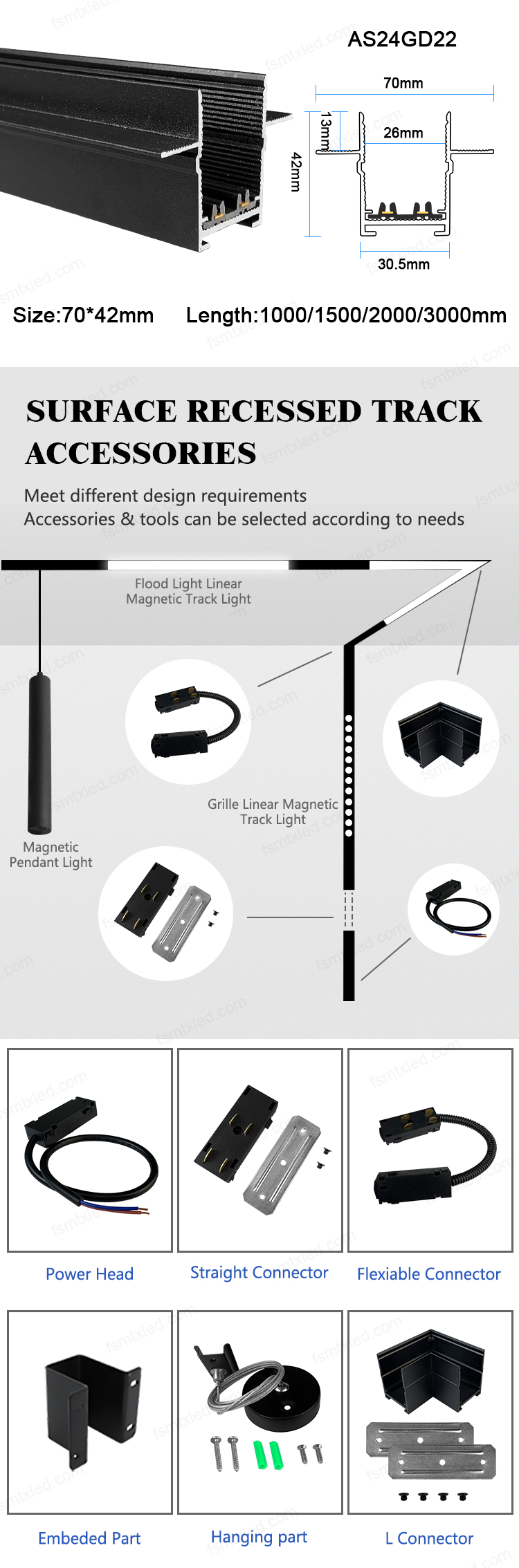

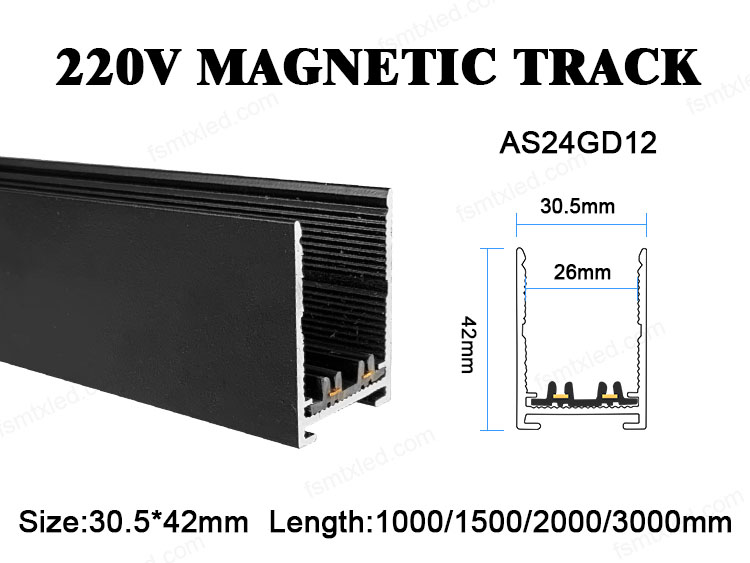

Each magnetic rail track can be cut off freely. The standard length for magnetic tracks is 1000mm, 2000mm, and 3000mm.Black magnetic track, white magnetic tracks options.

This solution is very safe DC90V-265 Voltage magnetic track light system ,You can't get an electric shock if you touch it.Track conductive copper wire is not exposed, and the conductive wire is hidden in the rubber strip, Which is safe to touch.Don’t need a transformer, it can be used directly after power connection.

Track rail easy to install and button firm design.

After the lamps and lanterns are installed,the position can be adjusted freely,and the quantity can also be increased or decreased at will.

If you take it out, just press the buttons on both sides to take out the light fixture,Safe and anti-drop.

Magnetic Track Light System Only Depends ON The Magnet To Fix The Light Into The Track Is Very Dangerous, The Lights Are Very Easy To Fall Down When The Magnet  Is Degaussing. So The Lights Fix Into The Track, It Mainly Depends ON The Button ON Both Sides.

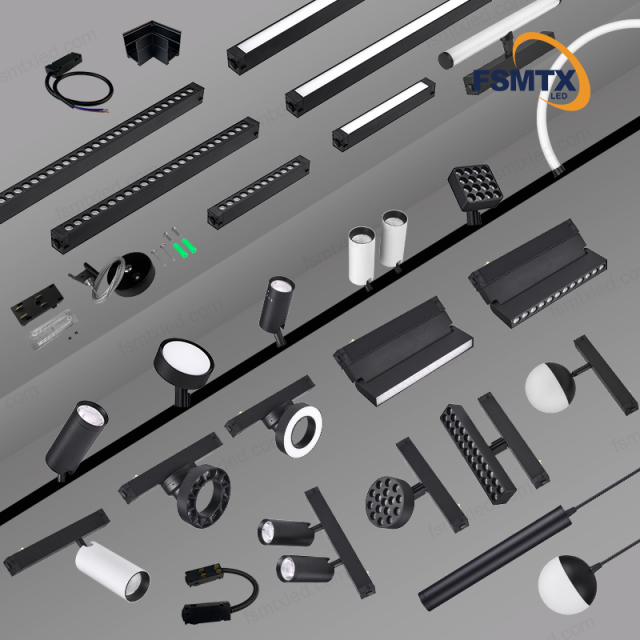

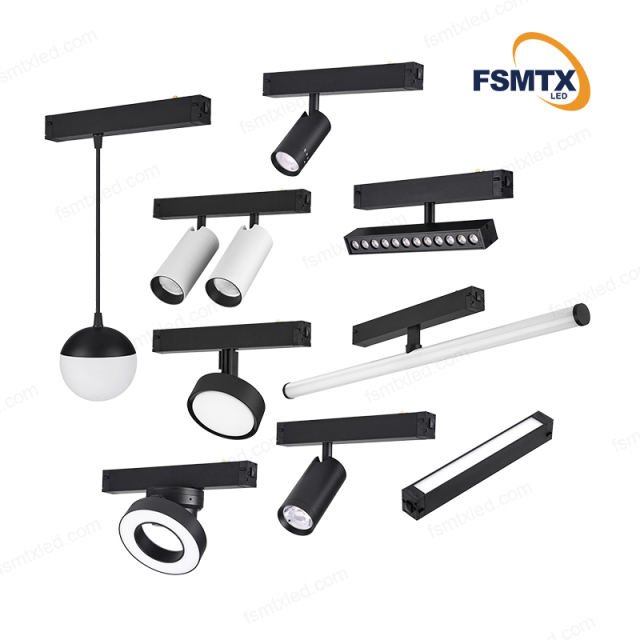

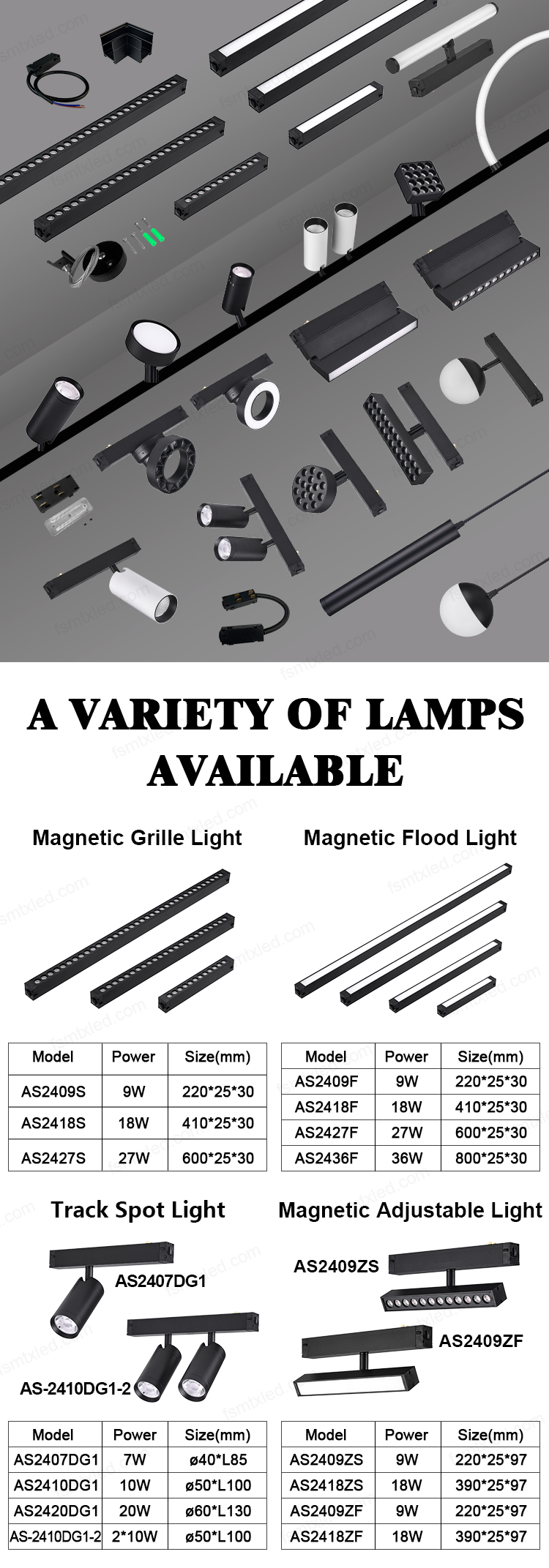

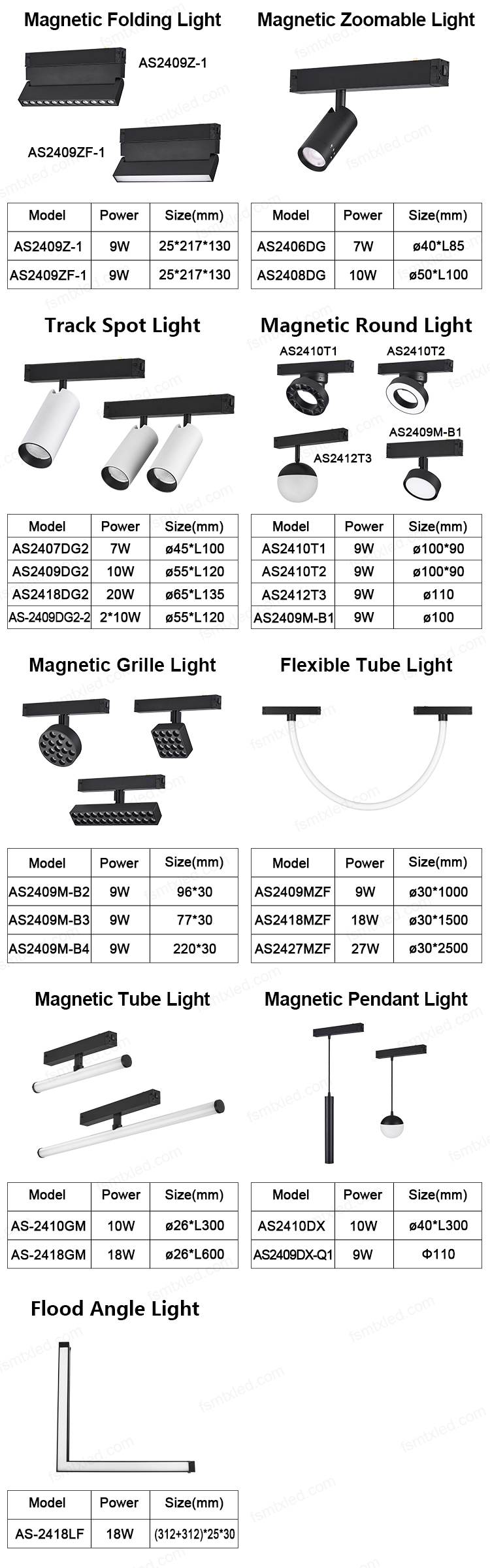

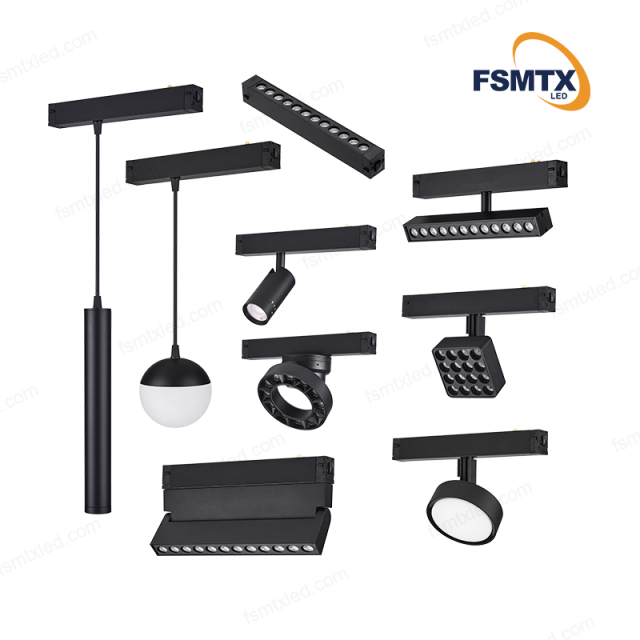

Different Smart dimmable magnetic tracklights options for the whole system

Wattage:8W 10W 16W 20W 24W 30W (can be customized)

Housing: Aluminum body for the tracks, and luminaires, matt white/ matt black finished.

Led chips: Osram or CREE LED Chips, CRI90, 100lm/W, 3000K, 4000K, 6000K color temperature or 3CCT dimmable available.

Led driver: Built-in DC90V-265V constant voltage power supply. Safe and stable in quality.

Diffuser/cover: PMMA reflector for spotlights, and milky cover for linear profile lights.

The black/white magnetic track grille linear light is a directional lighting fixture with PMMA reflector and OSRAM chips with high CRI 90. beam angle 100°. Suitable for use with magnetic line lights as basic lighting in the living room, dining room, corridor, etc.

Power&Size ：8W   L138*W34*H58mm

Power&Size ：16W L270*W34*H58mm

Power&Size ：24W L402*W34*H58mm

The black/white magnetic linear lights also called magnetic linear floodlights, OSRAM chips with high CRI 90 it is wide distribution 120° beam angle to be general lighting in large spaces like commercial, offices,hypermarket, etc.color temperature 3000K/4000K/6000K or 3 Color Changeable and Dimmable.

Power&Size ：10W L138*W34*H58mm

Power&Size ：20W L402*W34*H58mm

Power&Size ：30W L402*W34*H58mm

The black/white magnetic linear lights also called magnetic wall washer, OSRAM chips with high CRI 90.This one is specially designed for wall-washing lighting in museums and art galleries. The entire light spot is even and soft, creating a good visual experience.color temperature 3000K/4000K/6000K or 3 Color Changeable and Dimmable.

Power&Size ：8W L138*W34*H58mm

Power&Size ：16W L270*W34*H58mm

Power&Size ：24W L402*W34*H58mm

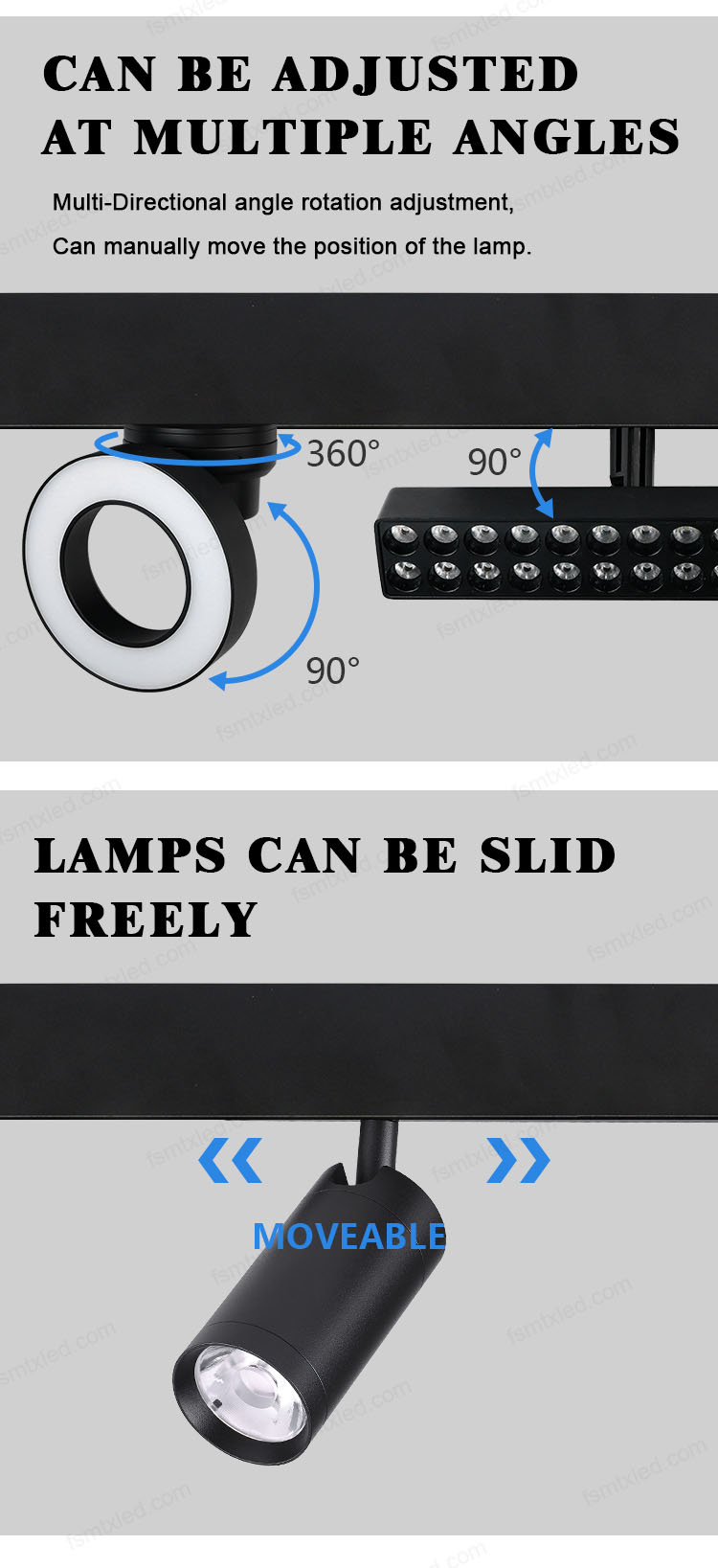

The adjustable magnetic spotlight and flood light is improved on the base of the magnetic grid spotlight floodlight , but it is available to be 90° adjustment as non-directional lighting, what is more, its beam angle is 15°24°36° distribution, generally, widely used for accent lighting for wall washer, background wall, painting, etc. :3 Color Changeable and Dimmable, matt black/matt white body option.

Power&Size ： 8W    L138*W34*H150mm

Power&Size ：16W  L270*W34*H150mm

The Magnetic track spot lights At the same time, the wide voltage DC90V-265V input scheme is adopted. Other parameters and specifications are almost the same, CRI90 CREE chips, power includes 10W 20W 30W Mainly application for kitchen room, dining room, and wall washer lighting as accent light fixtures.

Power&Size ：10W  Ø60*L100mm

Power&Size ：20W Ø60*L140mm

Power&Size ：30W Ø60*L170mm

Beam Angle :   15° 24° 36°

The magnetic pendant light is a cylinder downlight with hanging ropes for suspended installation as decorative lighting, It is generally used as auxiliary lighting and is mostly used in the study room, bedside table, cafe,above the dining table. The high CRI 90 CREE chip brings a perfect lighting performance

Power&Size ：10W   Ø60*L100mm

Beam Angle ：15° 24° 36°

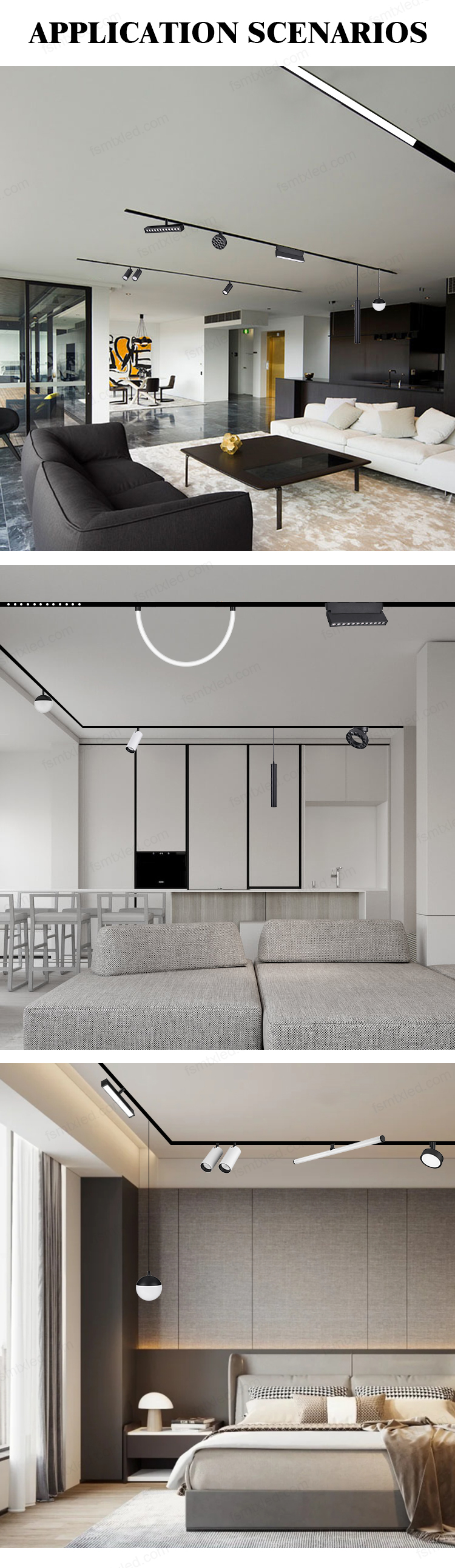

APPLICATION

It is the perfect choice for residential lighting for kitchen room, bedroom, living room, and dining room, and commercial lighting for office, and clothes stores.
